MIL-DTL-70599 Carbine, 5.56 Millimeter: M4This detail specification prescribes the requirements and identifies the verification procedures for the lightweight, air-cooled, gas operated, magazine-fed, 5.56 millimeter \(mm\) weapon designed for either three shot automatic burst or semi-automatic fire, hereafter referred to simply as the weapon.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19


MIL-DTL-70599C

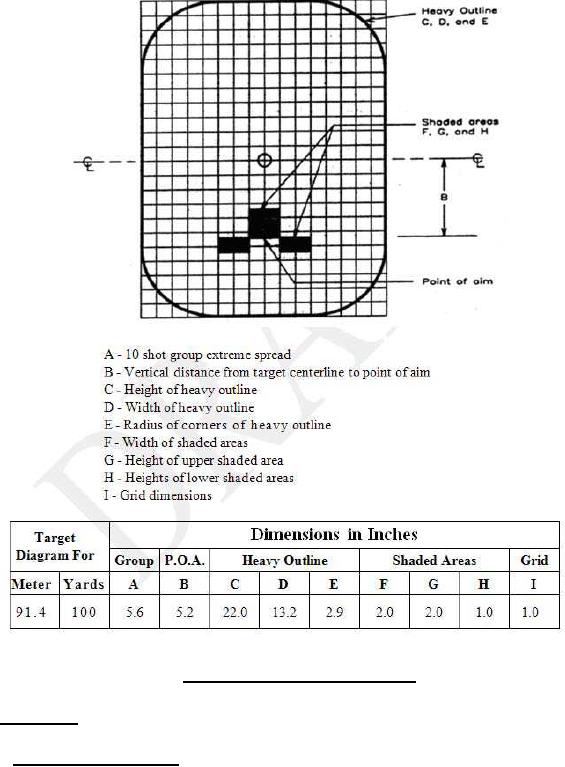

FIGURE 1. Targeting and accuracy diagram
3.6.7 Endurance.
3.6.7.1 Endurance functioning. The weapon shall fire 6,000 rounds of M855, 5.56mm
ball cartridge in accordance with drawing 9342868. There shall be no more than the number of
malfunctions and unserviceable parts allowed in Table I.
15
