MIL-DTL-71026A(AR)
5mm Diameter Precision Measuring Balls
F
G
45º 0' ± 0º 5'
(10º)
(B)
C
A
20
E
D

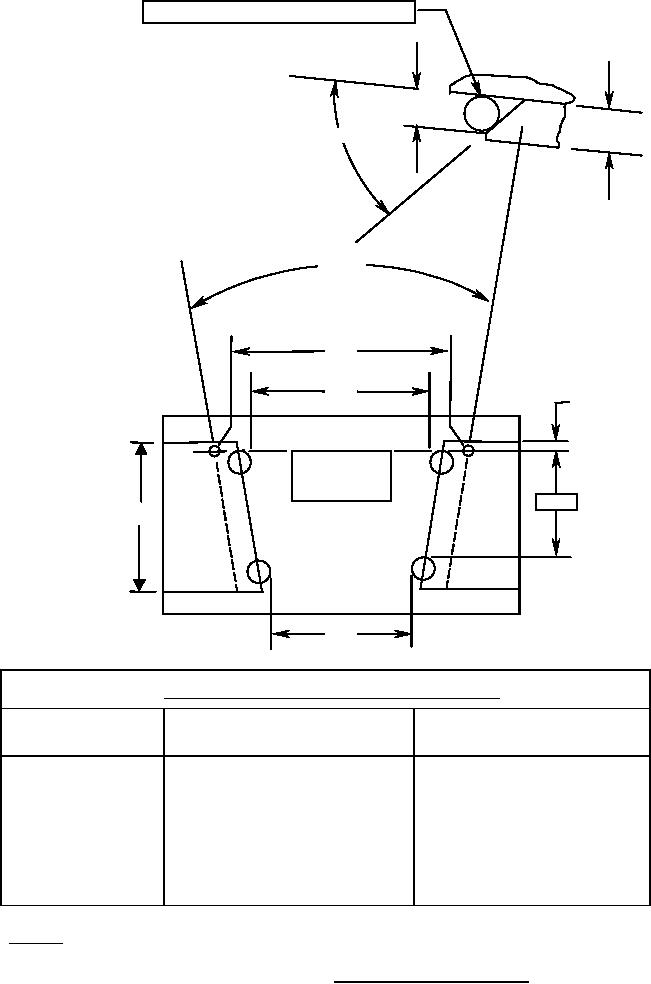

DOVETAIL INTERFACE REQUIREMENTS
ASSEMBLEABILITY GAGE
IMPACT TEST FIXTURE
DIM
(TIGHTEST FIT)
(LOOSEST FIT)
A
1.75 + 0.015
2.05 + 0.015
B
54.087 REF
53.803 REF
C
36.532 0.015
36.248 0.015
33.032 0.015
32.748 0.015
D
27.9 MIN
28.9 MIN
E
5.19 MIN
6.28 MIN
F
6.38 MIN
7.56 MIN
G
Note:
All dimensions are in millimeters
FIGURE 2. Dovetail Interface
